Main Features

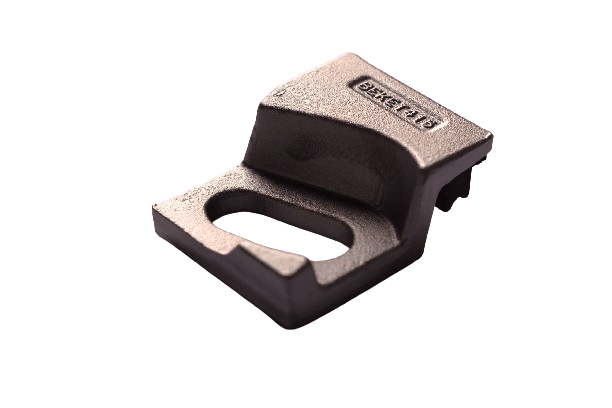

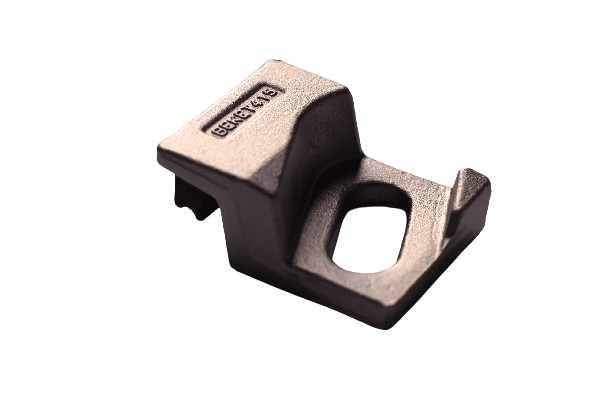

- BEKET 415 bolted rail clip, which is produced from a forged part, enables ease of assembly thanks to its special desing.
- The clips can preferred for rails with or without pads.
- The main part is locked to rail with M20 bolt and special washer.
- The rubber nose increases the tolerances of the rail support structures, reduces the stress of the connections, allows a better fixing of the rail.

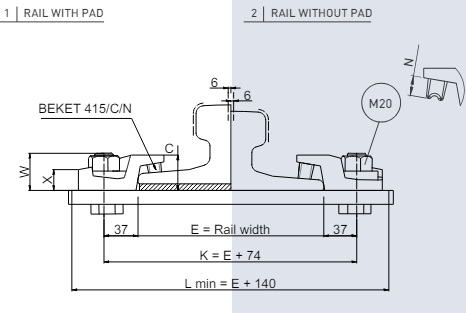

Technical Table
| CLIPS NO | X | C | W | N | Weight (Kg) |
| BEKET 415/38/14 | 21 | 38 | 40 | 14 | 0,760 |
| BEKET 415/38/21 | 21 | 38 | 40 | 21 | 0,800 |
Rail Types
| Rail Type | A | B | E | Without Pad | With Pad |
| A65 | 65 | 75 | 175 | 415/38/21 | 415/38/14 |
| A75 | 75 | 85 | 200 | 415/38/21 | 415/38/14 |
| A100 | 100 | 95 | 200 | 415/38/21 | 415/38/14 |
| A120 | 120 | 105 | 220 | 415/38/21 | 415/38/14 |
| S 33 | 58 | 134 | 105 | 415/38/21 | 415/38/14 |
| S 41A | 67 | 138 | 125 | 415/38/21 | 415/38/14 |
| S 49 | 67 | 149 | 125 | 415/38/21 | 415/38/14 |
| S 54 | 67 | 154 | 125 | 415/38/21 | 415/38/14 |
| 50 E2 | 72 | 151 | 140 | 415/38/21 | 415/38/14 |
| UIC 54 | 70 | 159 | 140 | 415/38/21 | 415/38/14 |
| UIC 60 | 72 | 172 | 150 | 415/38/21 | 415/38/14 |
| P 65 | 73 | 180 | 150 | 415/38/21 | 415/38/14 |
| KP 70 | 70 | 120 | 120 | 415/38/21 | 415/38/14 |
| KP 80 | 80 | 130 | 130 | 415/38/21 | 415/38/14 |
| CR 105 | 65,1 | 131,8 | 131,8 | 415/38/21 | 415/38/14 |
| CR 135 | 79,4 | 146,1 | 131,8 | 415/38/21 | 415/38/14 |
