Main Features

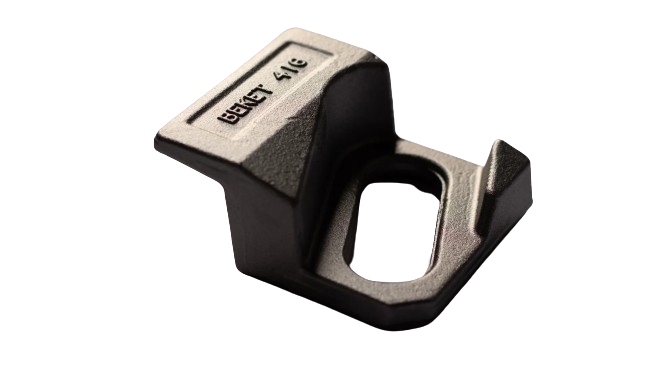

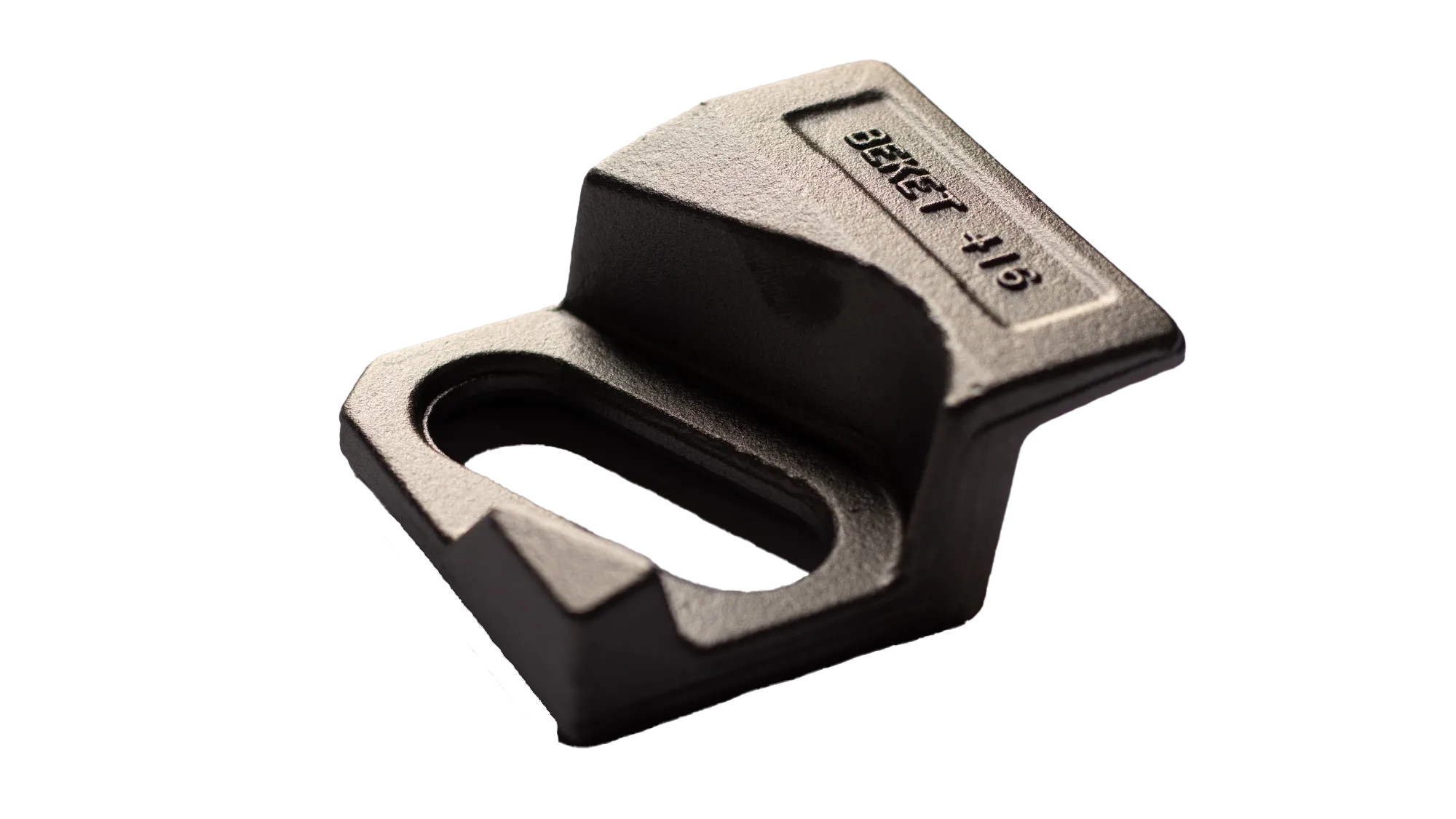

- BEKET 416 bolted rail clip, which is produced from a forged part, enables ease of assembly thanks to its special desing.
- The clips can preferred for rails with or without pads.
- The main part is locked to rail with M24 bolt and special washer.
- The rubber nose increases the tolerances of the rail support structures, reduces the stress of the connections, allows a better fixing of the rail

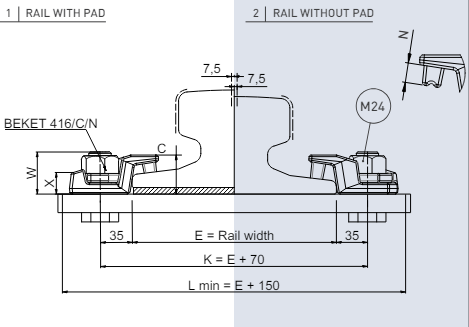

Technical Table
| CLIPS NO | X | C | W | N | Weight (Kg) |
| BEKET 416/42/9 | 22 | 42 | 45 | 9 | 0,900 |
| BEKET 416/42/14 | 22 | 42 | 45 | 14 | 0,915 |
| BEKET 416/42/21 | 22 | 42 | 45 | 21 | 0,930 |
Rail Types
| Ray Tipi | A | B | E | Pedsiz | Pedli |
| A100 | 100 | 95 | 200 | 416/42/21 | 416/42/19 |
| A120 | 120 | 105 | 220 | 416/42/21 | 416/42/14 |
| A150 | 150 | 150 | 220 | 416/42/21 | 416/42/14 |
| CR73 | 100 | 135 | 140 | 416/42/21 | 416/42/14 |
| CR100 | 120 | 150 | 155 | 416/42/21 | 416/42/9 |
| CR104 | 63,5 | 127 | 127 | 416/42/21 | 416/42/14 |
| CR105 | 65,1 | 131,8 | 131,8 | 416/42/21 | 416/42/14 |
| CR135 | 79,4 | 146,1 | 131,8 | 416/42/21 | 416/42/14 |
| CR171 | 101,6 | 152,4 | 152,4 | 416/42/21 | 416/42/14 |
| CR175 | 102,4 | 152,4 | 152,4 | 416/42/21 | 416/42/14 |
| MRS73 | 70 | 157 | 146 | 416/42/21 | 416/42/9 |
| MRS87A | 101,6 | 152,4 | 152,4 | 416/42/21 | 416/42/14 |
| P50 | 72 | 152 | 132 | 416/42/21 | 416/42/14 |
| P65 | 73 | 180 | 150 | 416/42/21 | 416/42/14 |
| KP100 | 100 | 150 | 150 | 416/42/21 | 416/42/14 |
| KP120 | 120 | 170 | 170 | 416/42/21 | 416/42/14 |
