Main Features

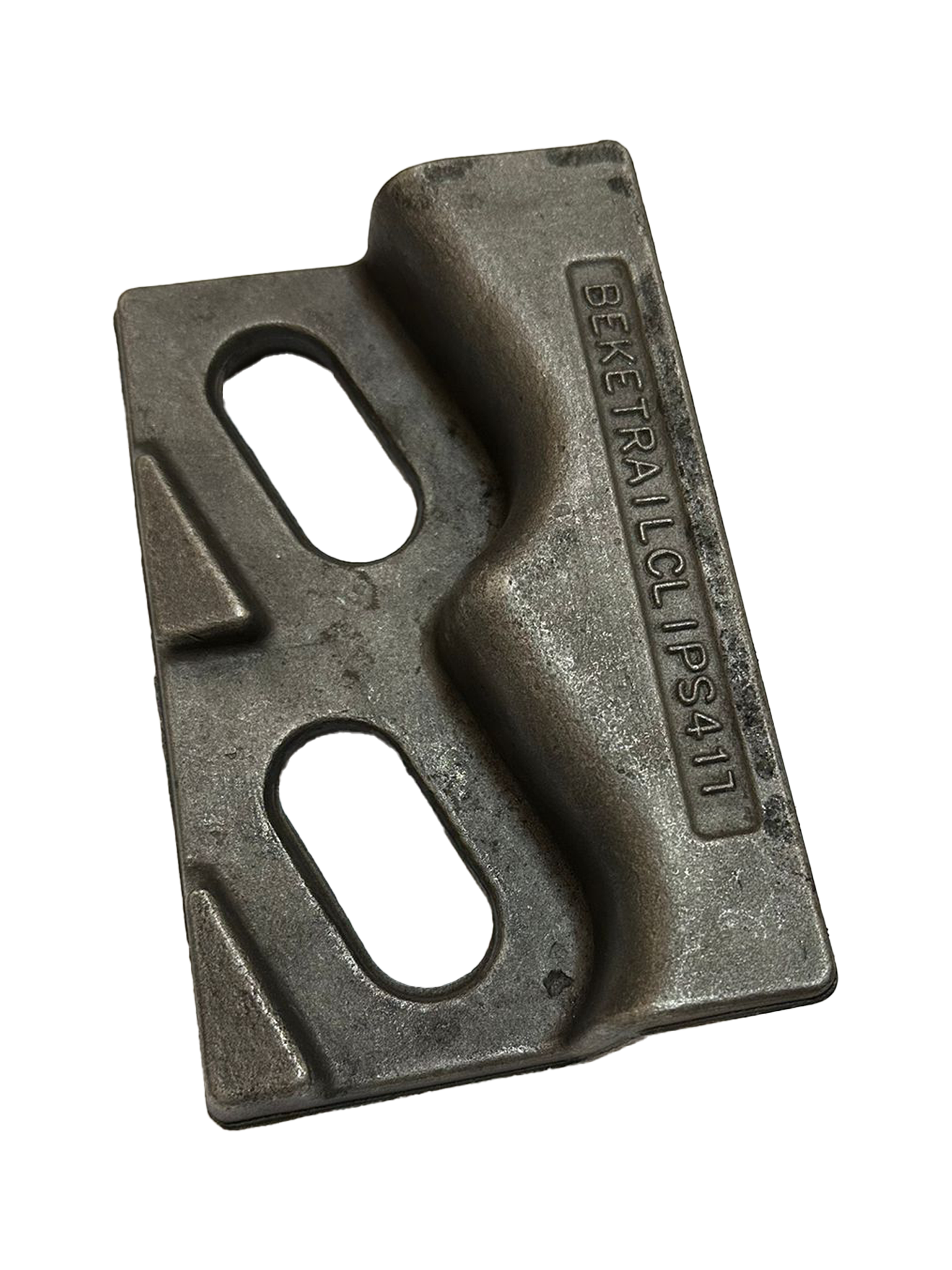

- BEKET 417 bolted rail clip, which is produced from a forged part, enables ease of assembly thanks to its special desing.
- The clips can preferred for rails with or without pads.

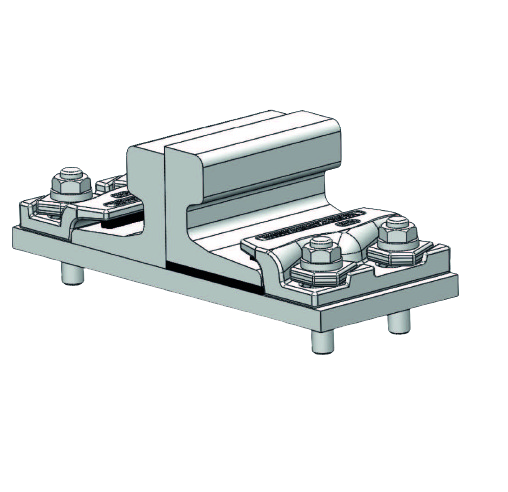

- The main part is locked to rail with M16 bolt and special washer.
- The rubber nose increases the tolerances of the rail support structures, reduces the stress of the connections, allows a better fixing of the rail.
Technical Table
| CLIPS NO | X | C | W | N | Weight (Kg) |
| BEKET 417/28/12 | 20 | 28 | 40 | 12 | 1,350 |
| BEKET 417/34/12 | 20 | 34 | 40 | 12 | 1,500 |
Rail Types
| Rail Type | A | B | E | Without Pad | With Pad |
| A45 | 45 | 55 | 125 | 417/28/12 | 417/34/12 |
| A55 | 55 | 65 | 150 | 417/28/12 | 417/34/12 |
| A65 | 65 | 75 | 175 | 417/28/12 | 417/34/12 |
| A75 | 75 | 85 | 200 | 417/28/12 | 417/34/12 |
| A100 | 100 | 95 | 200 | 417/28/12 | 417/34/12 |
| S24 | 53 | 115 | 90 | 417/28/12 | 417/34/12 |
| S30 | 60,3 | 108 | 108 | 417/28/12 | 417/34/12 |
| S31 | 56 | 125 | 106 | 417/28/12 | 417/34/12 |
| S33 | 65 | 145 | 135 | 417/28/12 | 417/34/12 |
| S41 A | 67 | 138 | 125 | 417/28/12 | 417/34/12 |
| 50E2 | 72 | 151 | 140 | 417/28/12 | 417/34/12 |
| 54 E1 (UIC54) | 70 | 159 | 140 | 417/28/12 | 417/34/12 |
| P24 | 73 | 107 | 92 | 417/28/12 | 417/34/12 |
| ASCE60 | 60,3 | 108 | 108 | 417/28/12 | 417/34/12 |
| ASCE80 | 63,5 | 127 | 127 | 417/28/12 | 417/34/12 |
| ASCE85 | 65,1 | 131,8 | 131,8 | 417/28/12 | 417/34/12 |
