Main Features

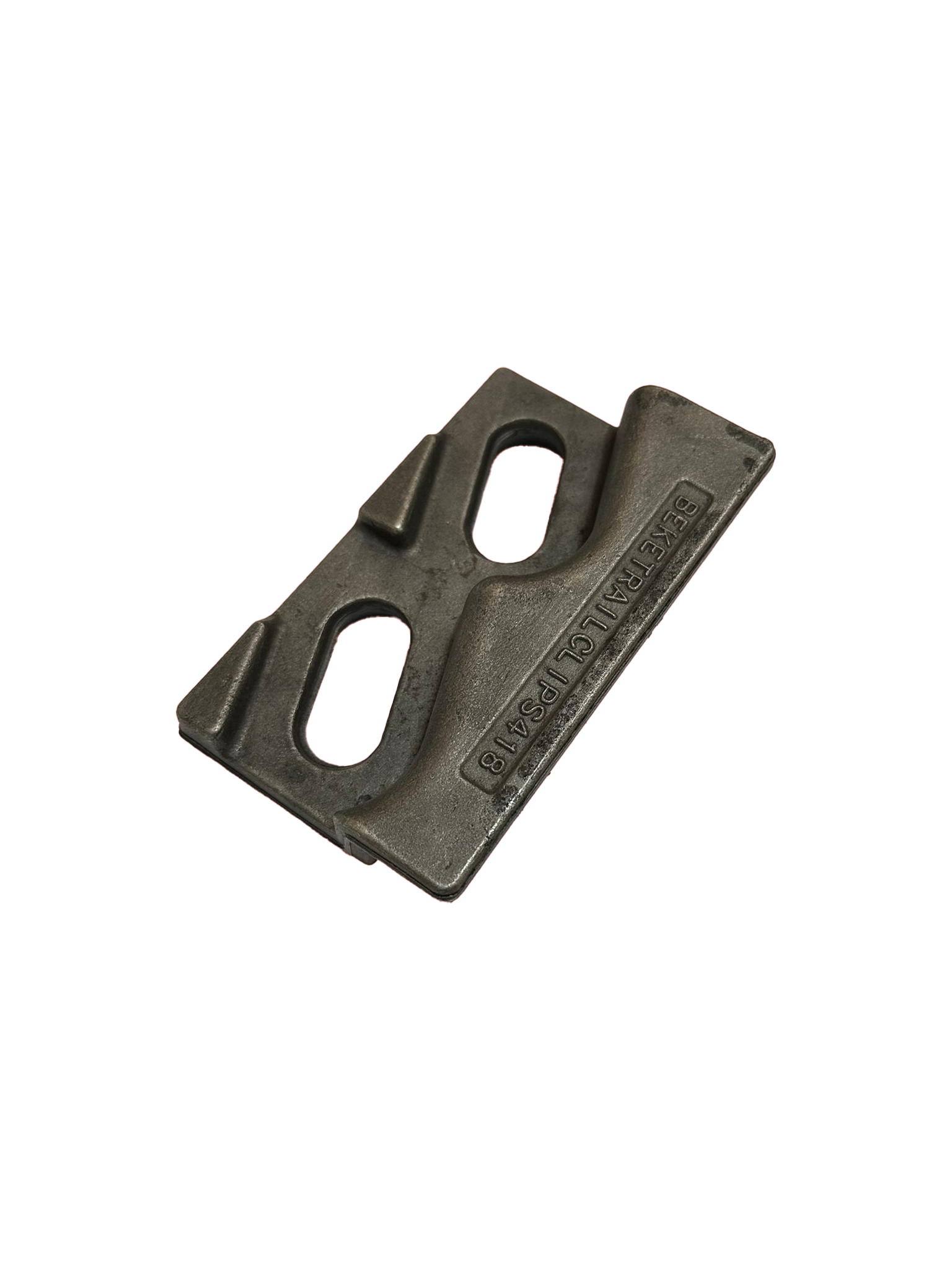

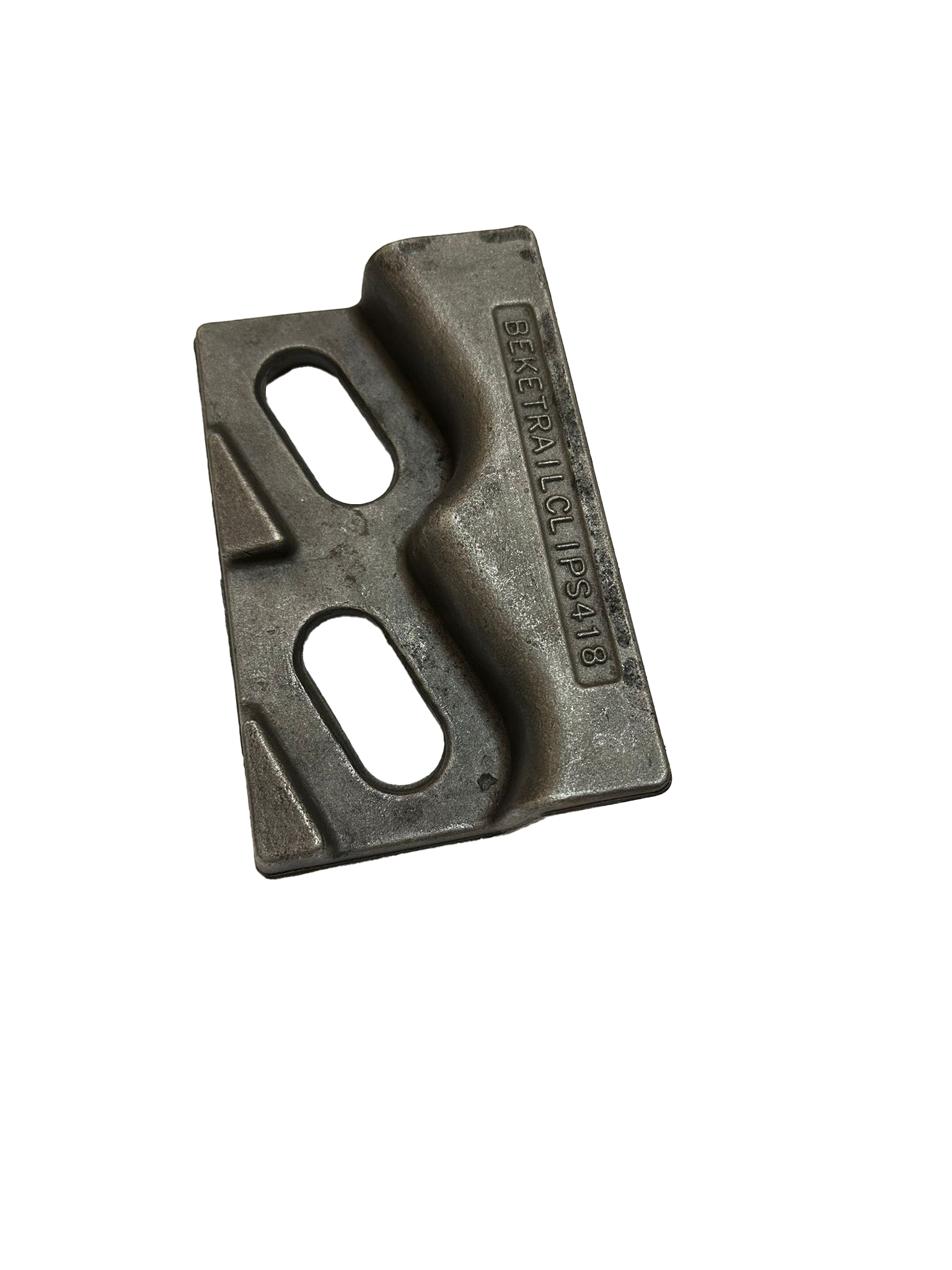

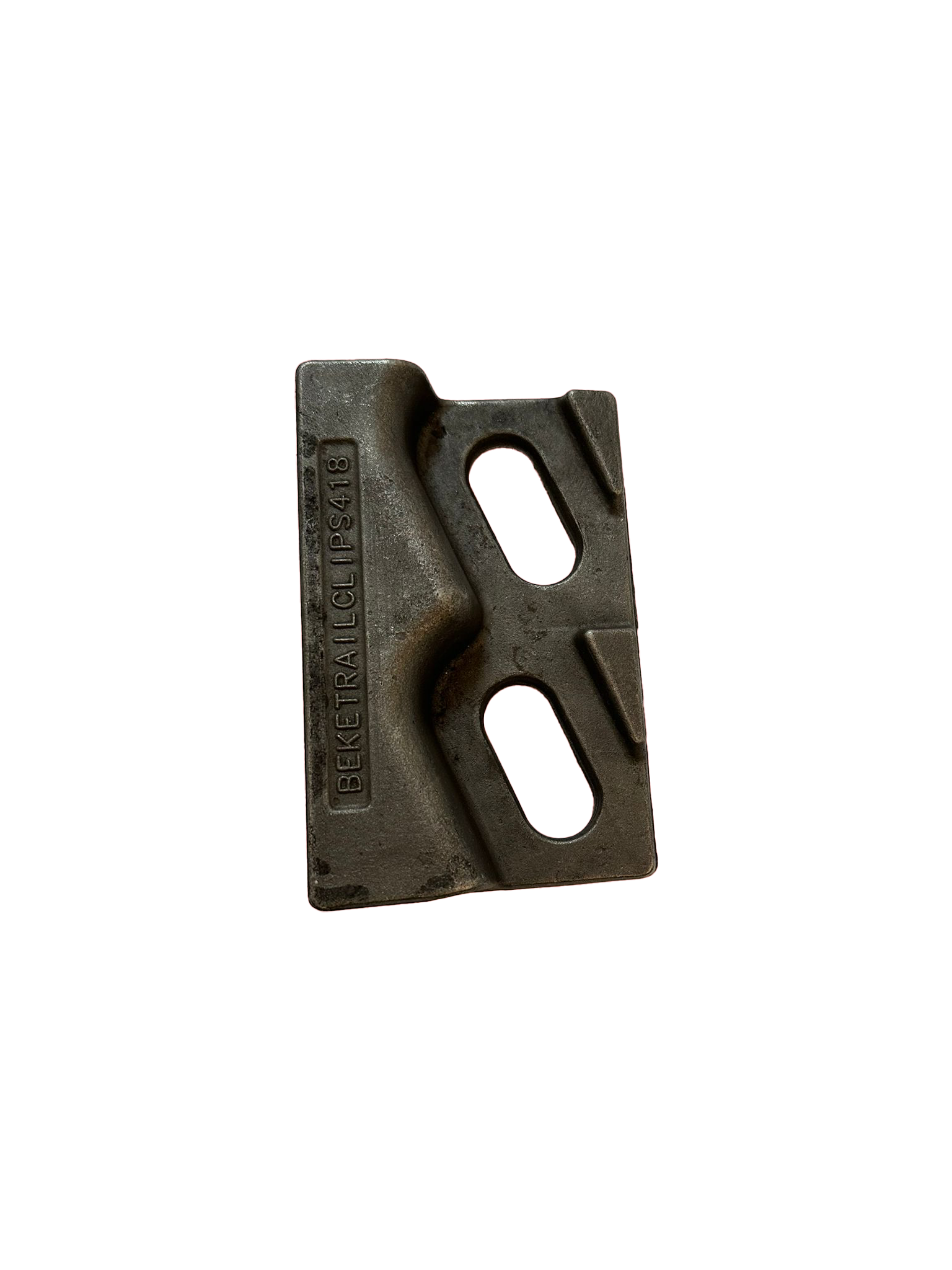

- BEKET 418 bolted rail clip, which is produced from a forged part, enables ease of assembly thanks to its special desing.
- The clips can preferred for rails with or without pads.
- The main part is locked to rail with special bolt.
- The rubber nose increases the tolerances of the rail support structures, reduces the stress of the connections, allows a better fixing of the rail.
Technical Table

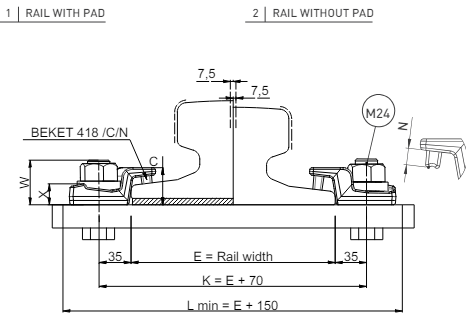

| CLIPS NO | X | C | W | N | Weight (Kg) |
| BEKET 418/40/12 | 21 | 40 | 50 | 12 | 0,790 |
| BEKET 418/37/18 | 21 | 40 | 50 | 18 | 0,800 |
Rail Types
| Rail Type | A | B | E | Without Pad | With Pad |
| A120 | 120 | 105 | 220 | 418/40/18 | 418/40/12 |
| A150 | 150 | 150 | 220 | 418/40/18 | 418/40/12 |
| CR73 | 100 | 135 | 140 | 418/40/18 | 418/40/12 |
| CR104 | 63,5 | 127 | 127 | 418/40/18 | 418/40/12 |
| CR135 | 79,4 | 146,1 | 131,8 | 418/40/18 | 418/40/12 |
| CR171 | 101,6 | 152,4 | 152,4 | 418/40/18 | 418/40/12 |
| CR175 | 102,4 | 152,4 | 152,4 | 418/40/18 | 418/40/12 |
| MRS73 | 70 | 157 | 146 | 418/40/18 | 418/40/12 |
| MRS86 | 102 | 102 | 165 | 418/40/18 | 418/40/12 |
| MRS87A | 101,6 | 152,4 | 152,4 | 418/40/18 | 418/40/12 |
| KP100 | 100 | 150 | 150 | 418/40/18 | 418/40/12 |
| KP120 | 120 | 170 | 170 | 418/40/18 | 418/40/12 |
