Main Features

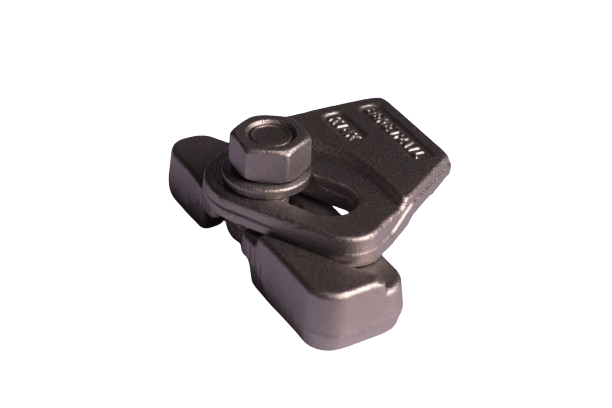

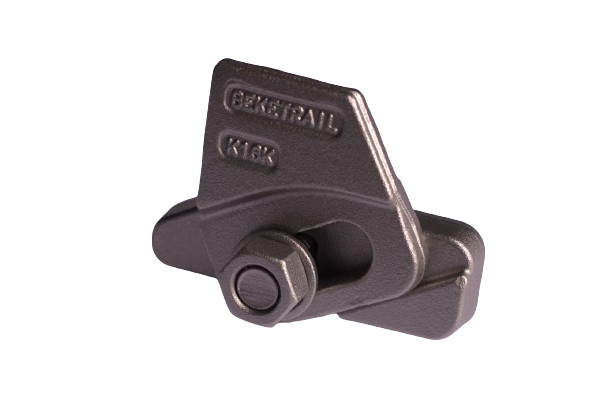

- BEKET K 16 welded rail clips, which are
produced from 2 forged parts as upper and
lower enables ease of assembly thanks to its
special desing. - The clips can preferred for rails with or
without pads. - The two main parts are locked together
with special bolt. - The rubber nose increases the tolerances
of the rail support structures, reduces the
stress of the connections, allows a better
fixing of the rail.
Technical Table
| CLIPS NO | X | C | W | N | Weight (Kg) |
| BEKET K 16K /33/10 | 23 | 33 | 50 | 10 | 0,825 |
| BEKET K 16K /33/14 | 23 | 33 | 50 | 14 | 0,845 |
| BEKET K 16K /33/18 | 23 | 33 | 50 | 18 | 0,865 |
| BEKET K 16/39/12 | 23 | 39 | 50 | 12 | 0,870 |
| BEKET K 16/39/16 | 23 | 39 | 50 | 16 | 0,880 |
| BEKET K 16/39/23 | 23 | 39 | 50 | 23 | 0,890 |

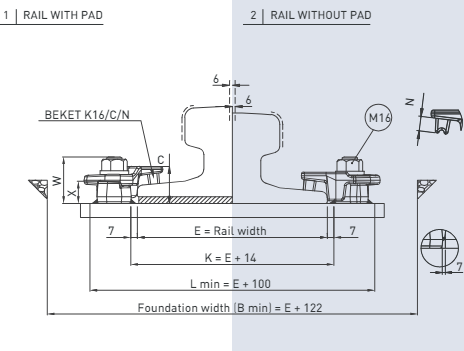

Rail Types
| Rail Type | A | B | E | Without Pad | With Pad |
| A45 | 45 | 55 | 55 | K16 K/33/18 | K16 K/33/14 |
| A55 | 55 | 65 | 65 | K16 K/33/18 | K16 K/33/14 |
| A65 | 65 | 75 | 75 | K16 K/33/18 | K16 /39/16 |
| A75 | 75 | 85 | 85 | K16 K/33/14 | K16 /39/16 |
| A100 | 100 | 95 | 95 | K16 K/33/14 | K16 /39/16 |
| A120 | 120 | 105 | 105 | K16 K/33/14 | K16 /39/12 |
| S30 | 60,3 | 108 | 108 | K16 K/33/18 | K16 /39/16 |
| S33 | 58 | 134 | 134 | K16 K/33/18 | K16 /39/16 |
| S41A | 67 | 138 | 138 | K16 K/33/18 | K16 /39/16 |
| S49 | 67 | 149 | 149 | K16 K/33/14 | K16 /39/16 |
| S54 | 67 | 154 | 154 | K16 K/33/14 | K16 /39/12 |
| UIC54 | 70 | 159 | 159 | K16 K/33/14 | K16 /39/16 |
| UIC60 | 72 | 172 | 172 | K16 K/33/14 | K16 /39/16 |
| P50 | 72 | 152 | 132 | K16 K/33/14 | K16 /39/12 |
| P65 | 73 | 180 | 150 | K16 K/33/14 | K16 /39/12 |
| KP70 | 70 | 120 | 120 | K16 K/33/14 | K16 /39/16 |
| KP80 | 80 | 130 | 130 | K16 K/33/14 | K16 /39/16 |
| KP100 | 100 | 150 | 150 | K16 K/33/14 | K16 /39/12 |
| KP120 | 120 | 170 | 170 | K16 /39/16 | K16 /39/12 |
